Adapting CNNs for Fisheye Cameras without Retraining

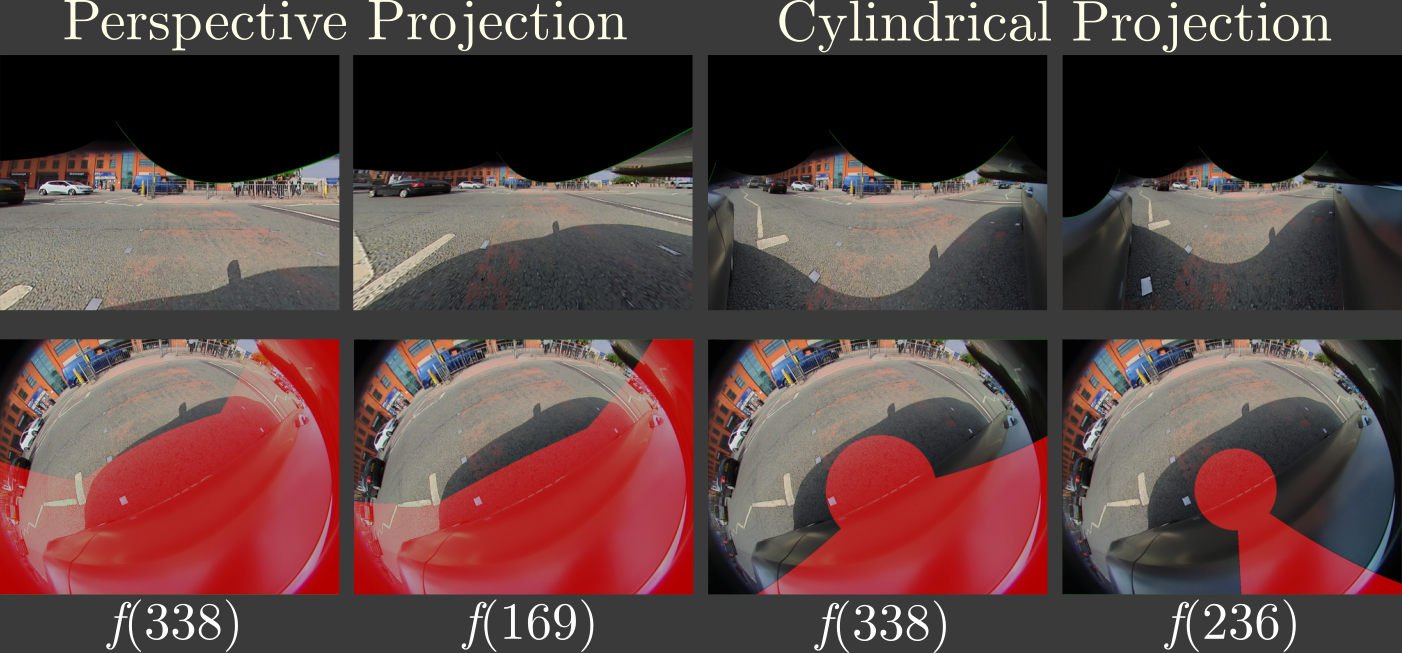

The majority of image processing approaches assume images are in or can be rectified to a perspective projection. However, in many applications it is beneficial to use non conventional cameras, such as fisheye cameras, that have a larger field of view (FOV). The issue arises that these large-FOV images can't be rectified to a perspective projection without significant cropping of the original image. To address this issue we propose Rectified Convolutions (RectConv); a new approach for adapting pre-trained convolutional networks to operate with new non-perspective images, without any retraining.

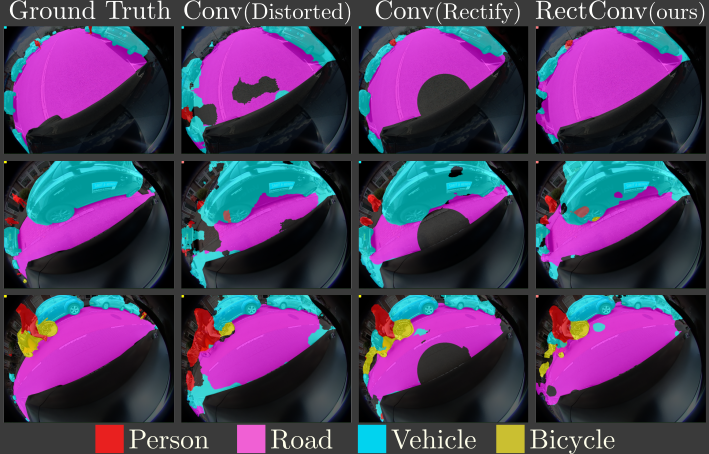

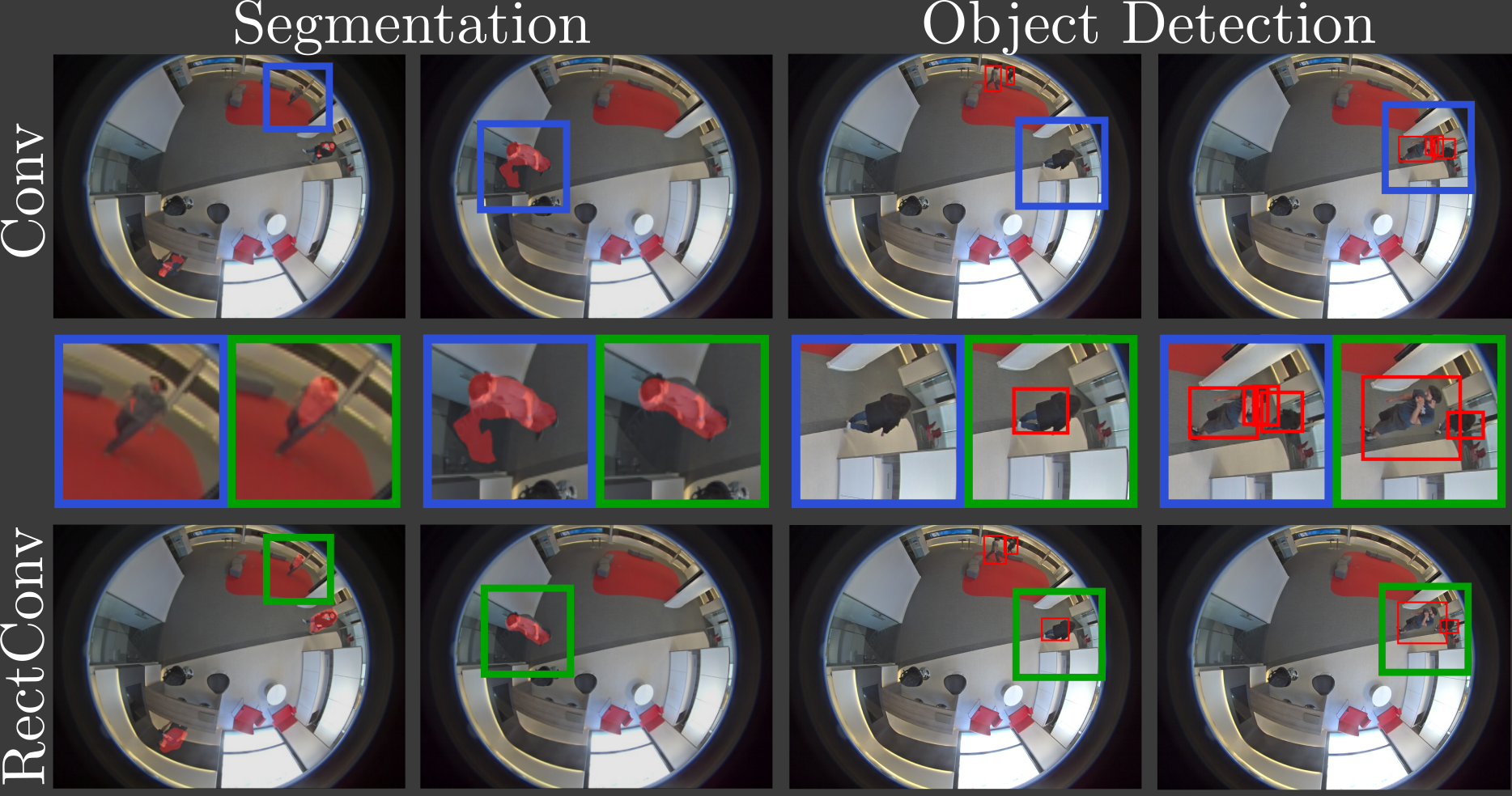

  • We demonstrate RectConv adapting multiple pre-trained networks to perform segmentation and detection on fisheye imagery from two publicly available datasets.

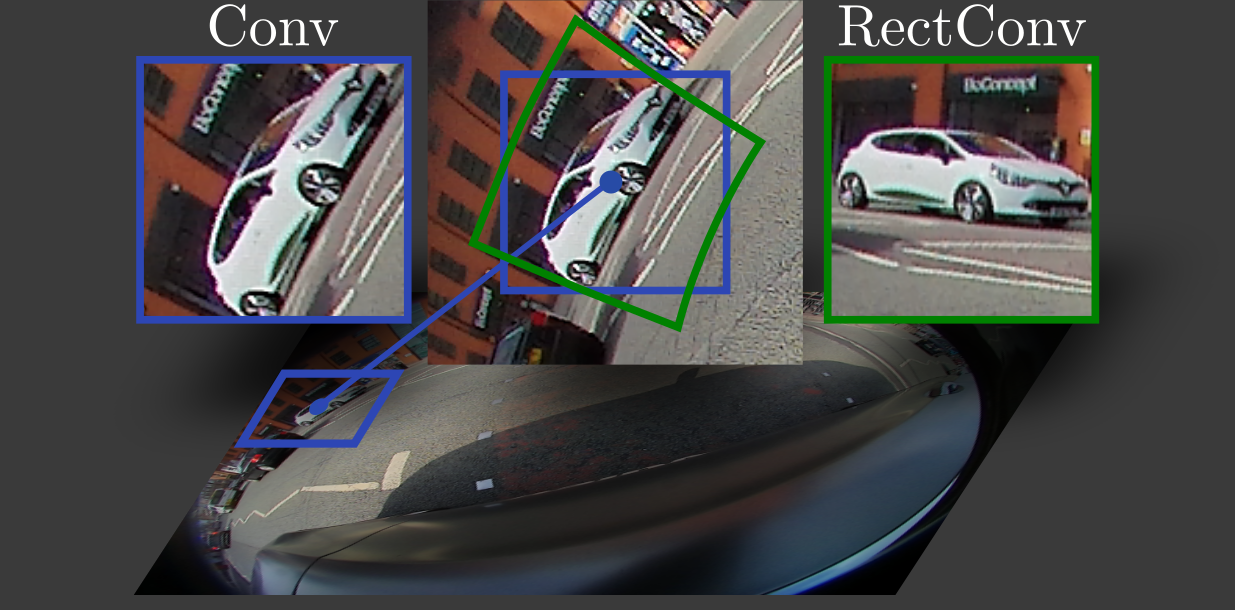

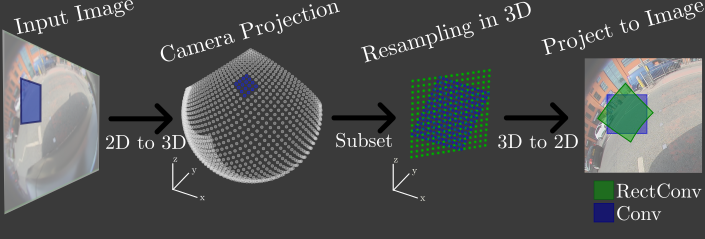

  • RectConv layers replace the convolutional layers of the network and allows the network to see both rectified patches and the entire FOV.
  • Our approach requires no additional data or training, and operates directly on the native image as captured from the camera.

We believe this work is a step toward adapting the vast resources available for perspective images to operate across a broad range of camera geometries.

Publications

•  R. Griffiths, and D. G. Dansereau, “Adapting CNNs for Fisheye Cameras without Retraining,” Arxiv, 2024. Preprint here.

Citing

If you find this work useful please cite
@article{griffiths2024adapting,
  title = {Adapting CNNs for Fisheye Cameras without Retraining},
  author = {Ryan Griffiths and Donald G. Dansereau},
  journal = {arXiv preprint arXiv:2404.08187},
  URL = {https://arxiv.org/abs/2404.08187},
  year = {2024},
  month = apr
}
This work was carried out within the Robotic Imaging Group at the Australian Centre for Robotics, University of Sydney.

Themes

Code

The code is available on GitHub here.
