Robotic Vision with Refractive Objects

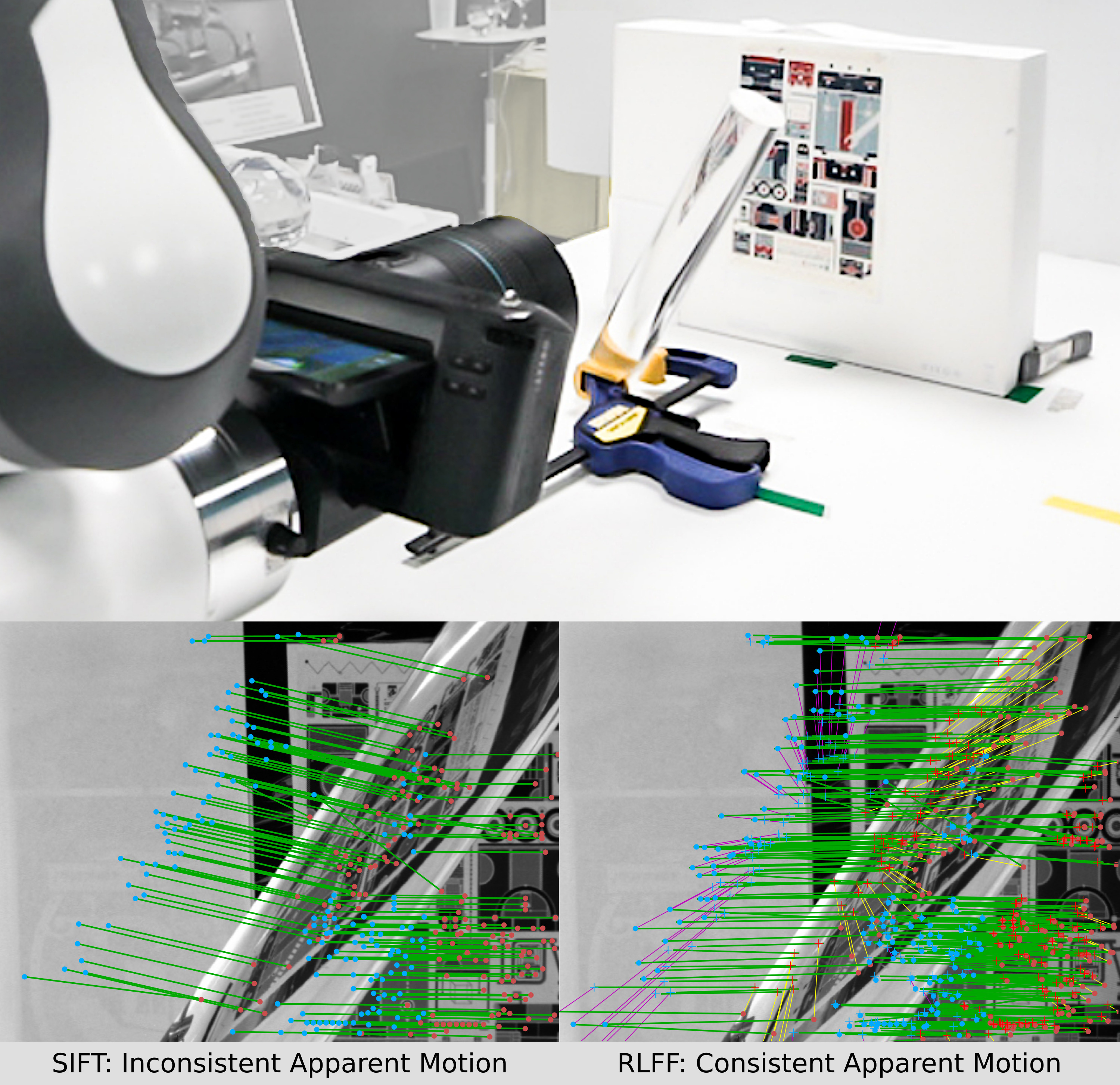

(bottom-left) Tracking conventional features like SIFT through transparent objects can yield inconsistent apparent motion and break 3D vision algorithms like structure from motion (SfM). (bottom-right) We propose the Refracted Light Field Feature (RLFF) that shows consistent apparent motion, enabling SfM to operate around refractive objects.

We describe a new kind of feature, the RLFF, that exists in the patterns of light refracted through objects
We propose efficient methods for detecting and extracting RLFF features from LF imagery
RLFF can be used in place of conventional features like SIFT, and improves SfM performance in scenes dominated by refractive objects
We show more accurate camera trajectory estimates, 3D reconstructions, and more robust convergence, even in complex scenes where state-of-the-art methods fail

RLFF advances robotic vision around refractive objects, with applications in manufacturing, quality assurance, pick-and-place, and domestic robotics around glass and other transparent materials.

Publications

[1] D. Tsai, P. Corke, T. Peynot, and D. G. Dansereau, “Refractive light-field features for curved transparent objects in structure from motion,” IEEE Robotics and Automation Letters (RA-L, IROS), 2021. Available here.

[2] D. Tsai, D. G. Dansereau, T. Peynot, and P. Corke, “Distinguishing refracted features using light field cameras with application to structure from motion,” IEEE Robotics and Automation Letters (RA-L, ICRA), vol. 4, no. 2, pp. 177–184, Apr. 2019. Available here.

Collaborators

This work was a collaboration between Donald Dansereau from the Robotic Imaging group at the Australian Centre for Field Robotics, and Peter Corke, Thierry Peynot, and Dorian Tsai from QUT's Australian Centre for Robotic Vision.

Acknowledgments

This research was partly supported by the Australian Research Council (ARC) Centre of Excellence for Robotic Vision (CE140100016).

Themes

Robust Vision, Algorithms and Architectures

Downloads

The code for the RLFF feature is on GitHub here.

The dataset used in the RLFF paper is here (16GByte download).

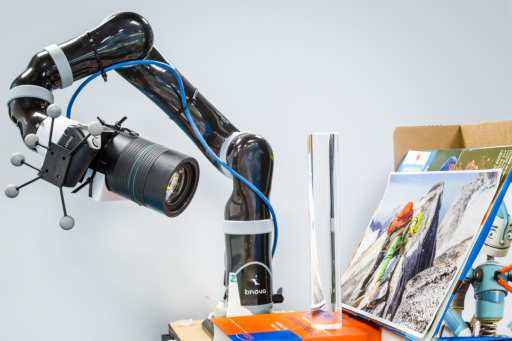

The dataset was captured with a robotic arm-mounted Lytro Illum, and contains 218 LFs of 20 challenging scenes with a variety of refractive and Lambertian objects. The dataset includes the raw LFs and known camera trajectories.

Gallery

(click to enlarge)

Closeup of one of the scenes rotating through LF views. The nonuniform apparent motion of the refracted scene content is clear in the deforming image seen through the glass bottle.

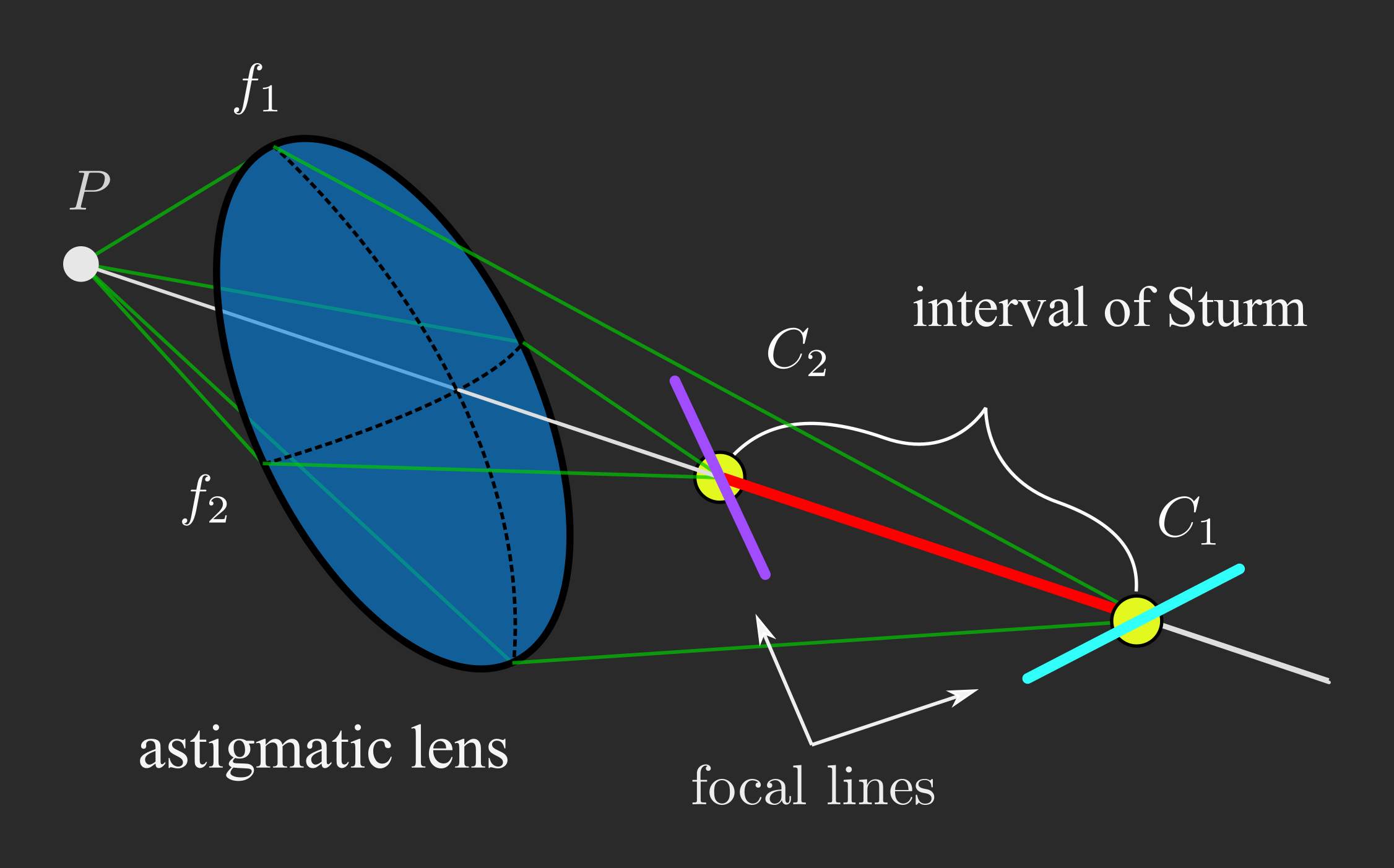

The interval of Sturm characterises how light emitted from a point appears when passing through a curved transparent object.

These observations also apply to any point identifiable using a 2D feature, e.g. Harris corners or SIFT features.

Even in the general case of unequal and non-orthogonal radii of curvature, the point forms two lines of focus separated by some interval. The points at each end of this interval are consistent when observed from different camera viewpoints.

An example of an RLFF observed from a captured LF.

Any 2D feature can form the basis for this approach. We match features between views, then employ eigenvalue decomposition to explain the feature observations in terms of the interval's parameters -- see the paper [1] for full details.

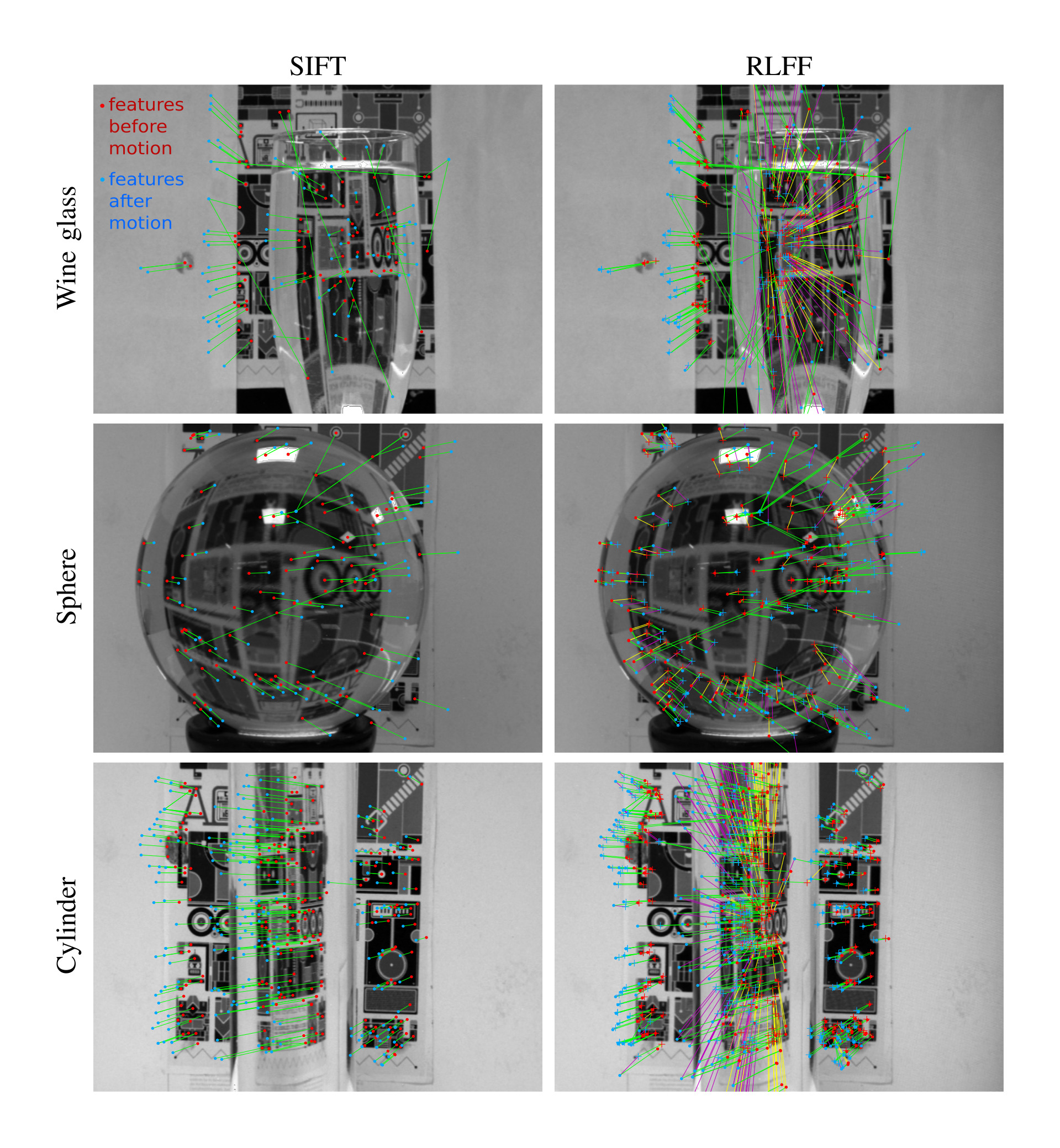

Comparing SIFT and RLFF features tracked across two views, for a variety of scene content and camera motions.

Careful inspection shows the interval associated with each RLFF replacing a single point associated with each SIFT feature.

Note that RLFF features generally exist in the space between objects, and not on surfaces as in conventional features operating on Lambertian scene content.

Note also that RLFF gracefully collapses to a single point when applied to Lambertian scene content.

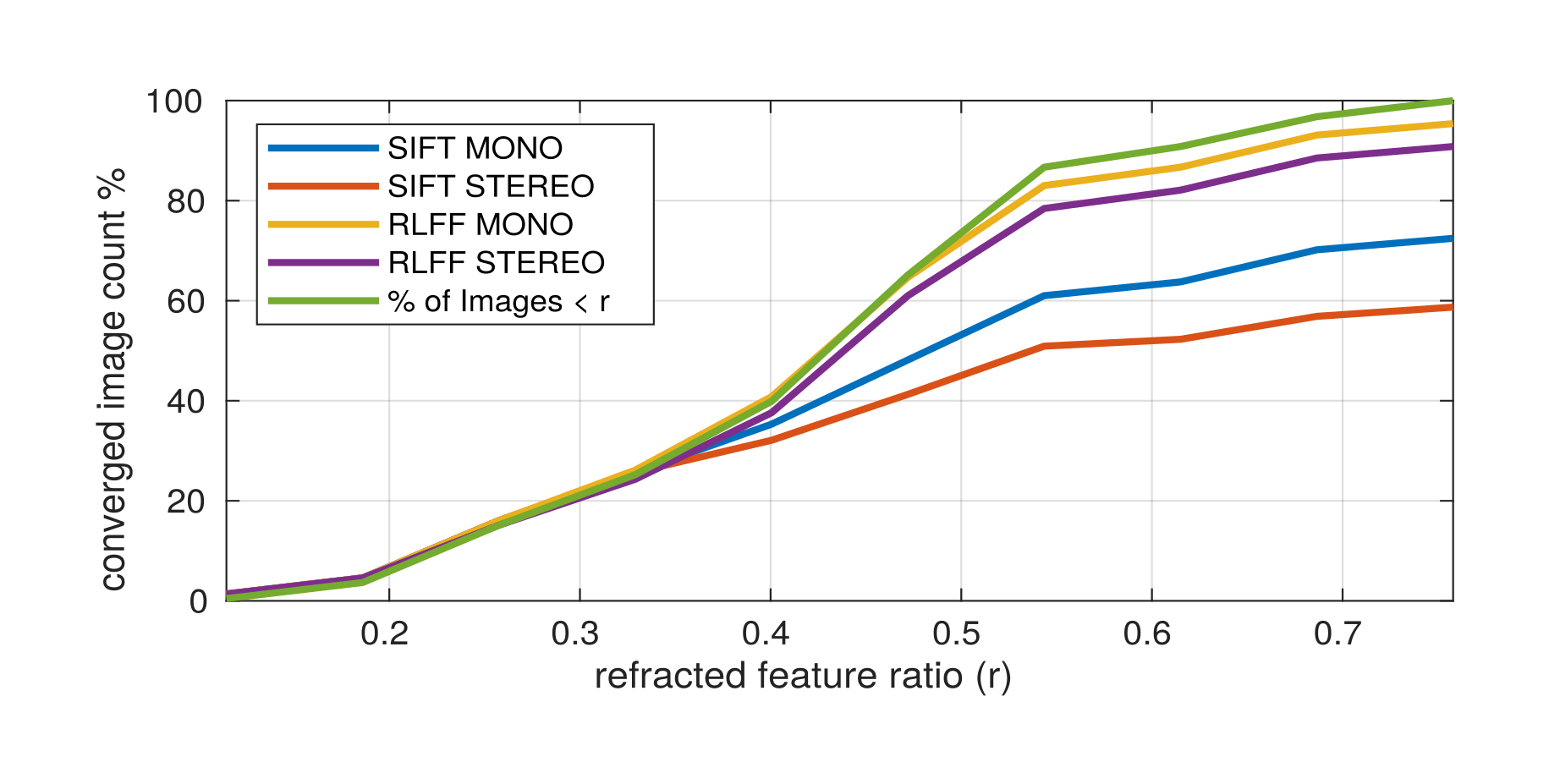

Cumulative histogram of images successfully used by structure from motion. For increasing refractive scene content (to the right) we see RLFF successfully incorporating more images than SIFT, with the most advantage for the most challenging scenes.

For full results please see the paper [1]. We evaluate convergence, camera trajectory accuracy, individual feature performance, and model completeness in structure from motion.

Our earlier work [2] focused on identifying and ignoring refracted features on the basis of their inconsistent apparent motion within a single LF.

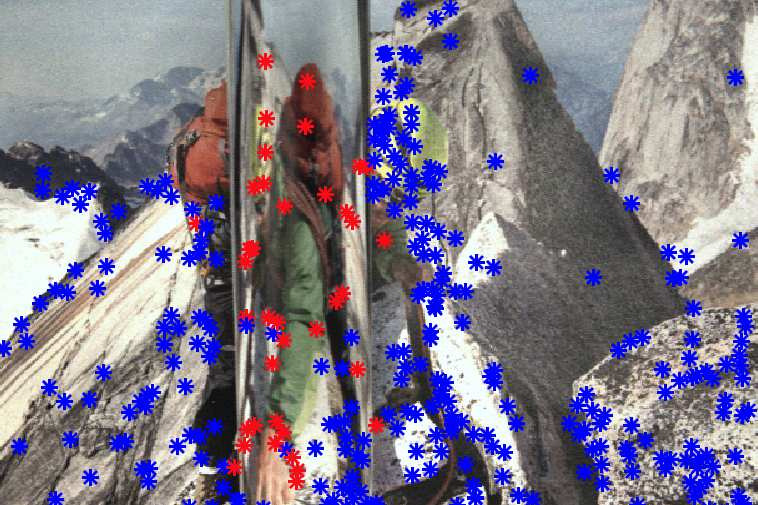

Here we see features identified as refractive. In [1] we show that rather than ignoring these features, we can make sense of them and use them to improve SfM in challenging scenes.
